Colour Tunable, Flicker Free, Human Centric Lighting.
PIXIE now delivers Human-Centric Lighting, or HCL, a type of lighting that helps people feel healthier and happier. It is designed to make you more comfortable, improve your mood, and help you get more work done.
Coolum PLUS RS
The S9068TW35WH/RS downlight is colour tunable, dimmable, RippleShield™ enabled, deep recessed low glare with CRI >90, 92mm cut out.
RippleShield™ Dimmer
The PIXIE RippleShield™ dimmer delivers smooth deep dimming to 1%, flicker free operation and colour tuning when paired with the Coolum PLUS RS downlight.
RippleShield™ Tech
With RippleShield built into the dimmer and the downlights, flickering downlights are history. This unique technology is tightly combined with PIXIE smarts too.
Human Centric Lighting
HCL aims to mimic the natural changes in daylight throughout the day. This means adjusting not only the brightness of the light but also its colour.
Perfect Pairing for Perfect Lighting
Human Centric Lighting is achieved with PIXIE by pairing the PIXIE RippleShield™ dimmers with the SAL Coolum PLUS RS downlights. When combined PIXIE delivers a unique outcome cost effectively and quickly.
Colour tunable from 3000k to 6500k, manually or via HCL mode automatically.
*Gateway required for Auto HCL mode
Smooth, deep dimming to 1% light outpt.
Immunity to off peak hot water tone injection in NSW and QLD delvering flicker free operation.

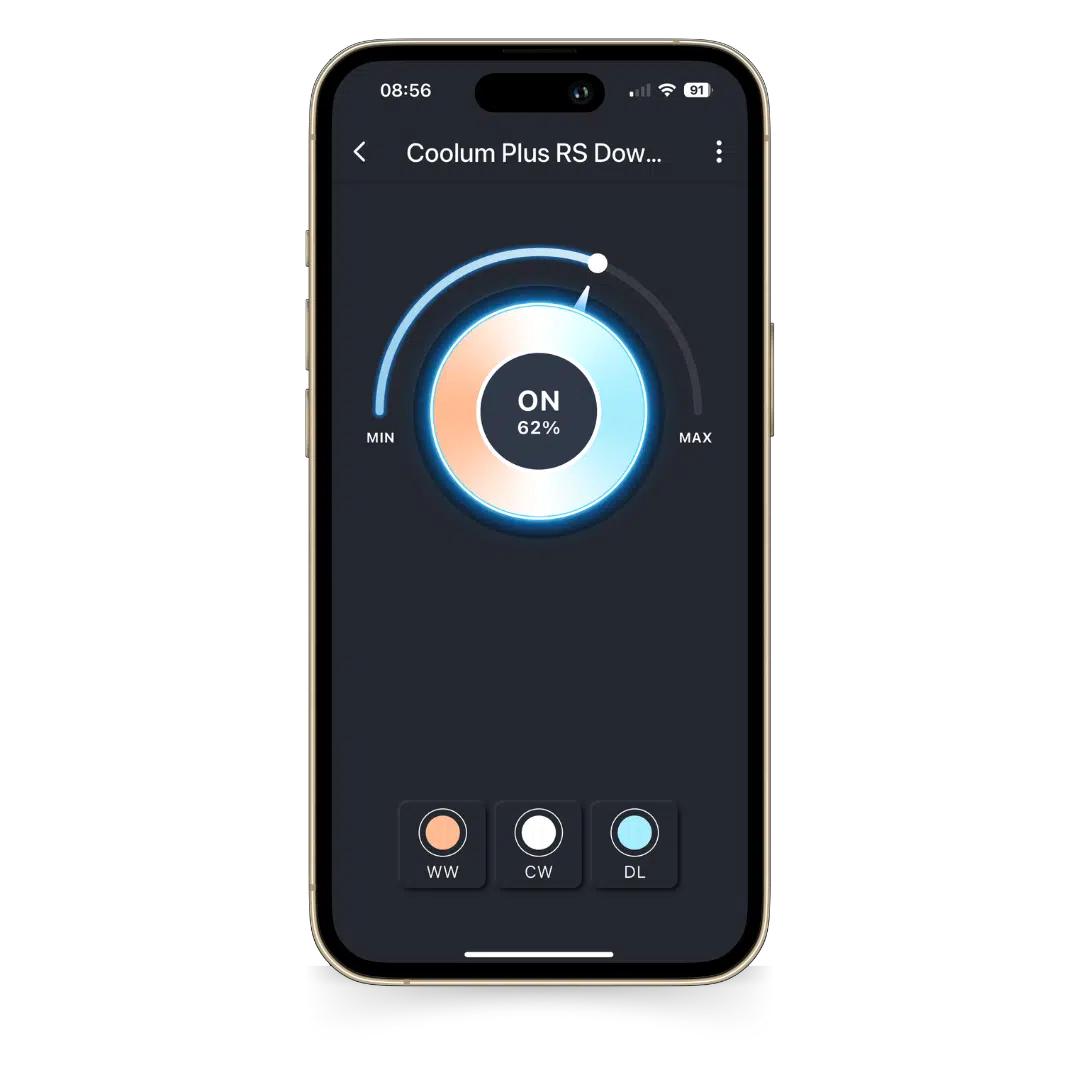

Easy select shortcuts in the App for most common white colour tuning. Warm white, cool white, daylight.
PIXIE smart home technology embedded, for schedules, groups, scenes and automations.
The PIXIE RippleShield™ SDD400RSBTAM dimmer is a 2 wire dimmer, straight forward dimmer installation for electricians.
Coolum PLUS RS Colour Tunable Downlights
A simple plug and play replacement for existing downlights to experience the benefits of Human Centric Lighting
High Quality Colour Rendering CRI > 90
Human Centric Ligthing Mode
With the PIXIE Gateway installed activate the HCL mode to allow the optimal light colour to be automatically selected based on the time of day.
RippleShield flicker immunity built in driver
Deep. smooth dimming to 1% light output
Colour tune between 3000K and 6500K
Standard 92mm Cut out
2 core flex and plug provided
Get Connected. Simple. Smart. Home. PIXIE
Standard 92mm Cut out
Simple installation with standard tools and methods without any special wiring, programming or devices.
Plug and Play Swap Over
Its never been this easy for electricians to deliver sophisticated dimming & colour control capabilities by swapping just 2 components.
Deep Dimming
Smooth, deep dimming to 1% at all colour levels delivers a luxuriant dimming experience normally reserved for high end solutions.
Voice Control
Control your lights to their dimmed level and colour automatically using your voice to set the perfect mood.
On Wall Control Anywhere at Home
Using a PIXIE Multifunction Controller, installed on a wall plate you have full control of intensity and colour from a simple button, anywhere at home.
Schedule Your Precise Mood
Create schedules for ligthing to operate ant prceise times, with precise intensit and colour to suit the most demanding homeowners.
Ideal for Aged Care
The PIXIE HCL mode automatically changes the colour of the light output to match the time of day.
For residents who may be spending more time indoors, this function can serve to simulate the natural changes in light throughout the day.
And best of all whenever the light is turned on, it will automatically adjust gently to the correct light colour, for the time of day it is activated.
If its left on all day it will slowly change throughout the day automatically too.
Benefits for Aged Care Environments
-
Low glare deep recessed fixture -
High quality light CRI 90
-
Nothing new to learn, install and use as any other light
Specifications
PIXIE RippleShield™ Dimmer
-
Digital push button control, with three (3) complimentary key caps provided to suit most switch plates
-
Combined with the SAL rippleSHIELD downlights Ecogem, Unifit or Coolum Plus series, the rippleSHIELD dimmer eliminates nuisance ripple induced flicker between 750-1050Hz once and for all.
-
Smooth dimming performance to 1.0% of light output
-
PIXIE connectivity is achieved via the PIXIE / PIXIE PLUS app or paired secondary device.
- Maximum of 150VA load or approx 15 Coolum PLUS RS downlights per dimmer
- Must be installed by a licensed electrician
Documents
SAL Coolum PLUS RS – S9068TW35WHRS
-
Combined with the SAL SDD400RS/BTAM dimmer, the rippleSHIELD Coolum eliminates ALL nuisance non-visible and visible flicker caused by ripple injection
-
Integral 9 watt rippleSHIELD dimmable LED driver, with smooth dimming performance down to 1.0% of light output, designed with flex and plug for easy installation.
-
Tunable WHITE from 3000K to 6500K
-
High efficiency LED optics, multi-faceted optical system, 60° beam distribution, UGR<19, CRI>90
-
Polyamide trim and body, choice of white or black
-
CA-90 rated, double insulated, Dimmable, only with SDD400RS/BTAM rippleSHIELD dimmer
- Must be installed by a licensed electrician
Documents
PIXIE Accessories - Increase the IQ of your Smart Home
Contact Sensor Transceiver
Monitor open & closed status of gates/doors/windows, via a set of contact sensors (sold separately). Push Notifications to users are delivered (PIXIE PLUS App only) when status change occurs.
Mesh Signal Booster
Expand the signal coverage of an established PIXIE network, extending the control distances and enhancing PIXIE local wireless communication stability where signal strength is less than ideal due to building materials, architecture and product placement.
Remote Control Button
The ALL NEW remote control button provides PIXIE's famous multifunction control functionality in a modern form factor and comes with magnets and 3M stickies to attach where needed.
Non Smart Button & Momentary
Designed to fit the PIXIE Ambience wall plate range and available in 2 version - Press Mech and Momentary press Mech. These 10AX rates non smart switches deliver a uniform look and feel when combined PIXIE smart and Non smart devices are needed on the same wall plate.
3rd Party Interfacing Module
Experience complete home automation. Make your home even smarter with the interfacing module. Integrate your PIXIE home to legacy home automation systems, audio visual systems and security systems.
Larger Load Relay Controller
Control devices with larger electrical loads like pool pumps and floodlights. Drive contactors for outdoor heaters and control any sized load simply and easily with schedules and automatic control.
Smart Timer Module
This highly specialised module allows even more energy savings fine tuning and timing for non-timer enabled devices, timing out groups and timing out scenes throughout your smart home, inside and out.
Remote Control Mech
All the power of a PIXIE Multifunction controller in a battery powered device. Perfect for installation where getting a wire down a wall is a challenge for multiway control and scene control functions.
