A Touch of Smart to Transform Your Home

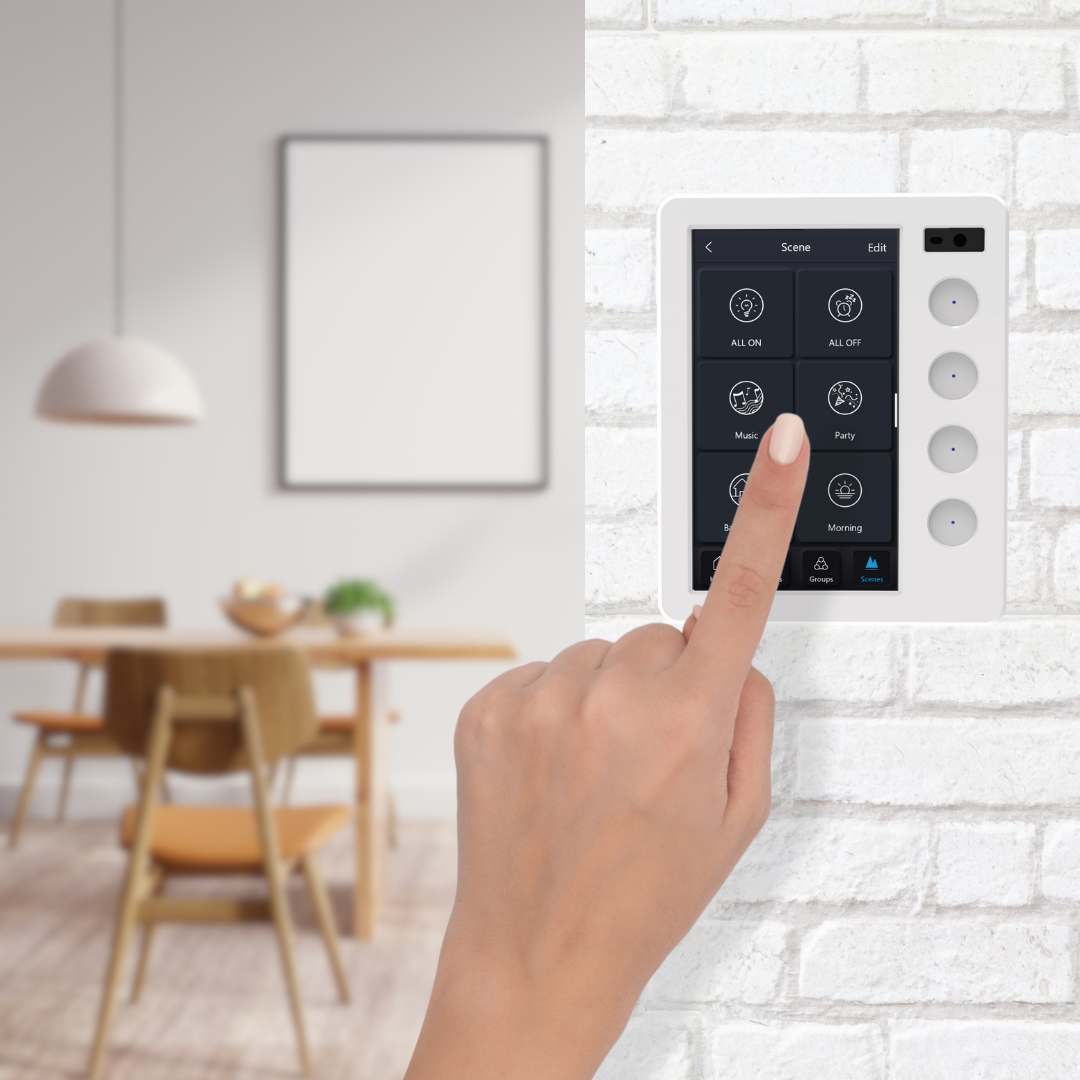

The optional PIXIE Ambience Touch Panel delivers a butter-smooth touch screen experience to control your PIXIE smart home from one or more centralised locations. In addition to the useable touch screen, the 4 Multifunction control buttons deliver rapid access to control common devices, groups or scenes and can be tailored according to home owner’s needs for the ultimate smart home convenience.

Works with PIXIE smart home master device - Pair with PIXIE - PIXIE smart home system

Time and Weather

Choose if you would like the time displayed and if the weather is important the PIXIE Touch Panel reminds you of what to expect.

PIXIE smart home mimic mode - Pair with PIXIE - PIXIE smart home system

Screen Saver

Adjust the brightness, screensaver operation, and background image – or black out completley for Touch Panel longevity.

PIXIE smart home scene controller - Smart home scene controller - PIXIE smart home system

Detailed Control

Control devices, groups and scenes and navigate your home by Rooms to drill down to individual device control, just like the PIXIE Apps.

Single tap, double Tap Scene controller - Pair with PIXIE - PIXIE smart home system

Fast Setup. Customisable.

A ton of options to configure the Touch Panel to perfectly perform conrol of your PIXIE home, where you install it.

PIXIE Ambience Touch Panel.

Elevate Your Smart Home Experience.

The PIXIE Ambience Touch Panel is a premium addition to the PIXIE solution that elevates the smart home experience.

It takes just a few minutes to get the PIXIE Touch Panel connected to your PIXIE  Gateway and configured to meet your needs.

No laptops needed.

PIXIE multifunction controllers - Flexible Australian smart home system - PIXIE
P

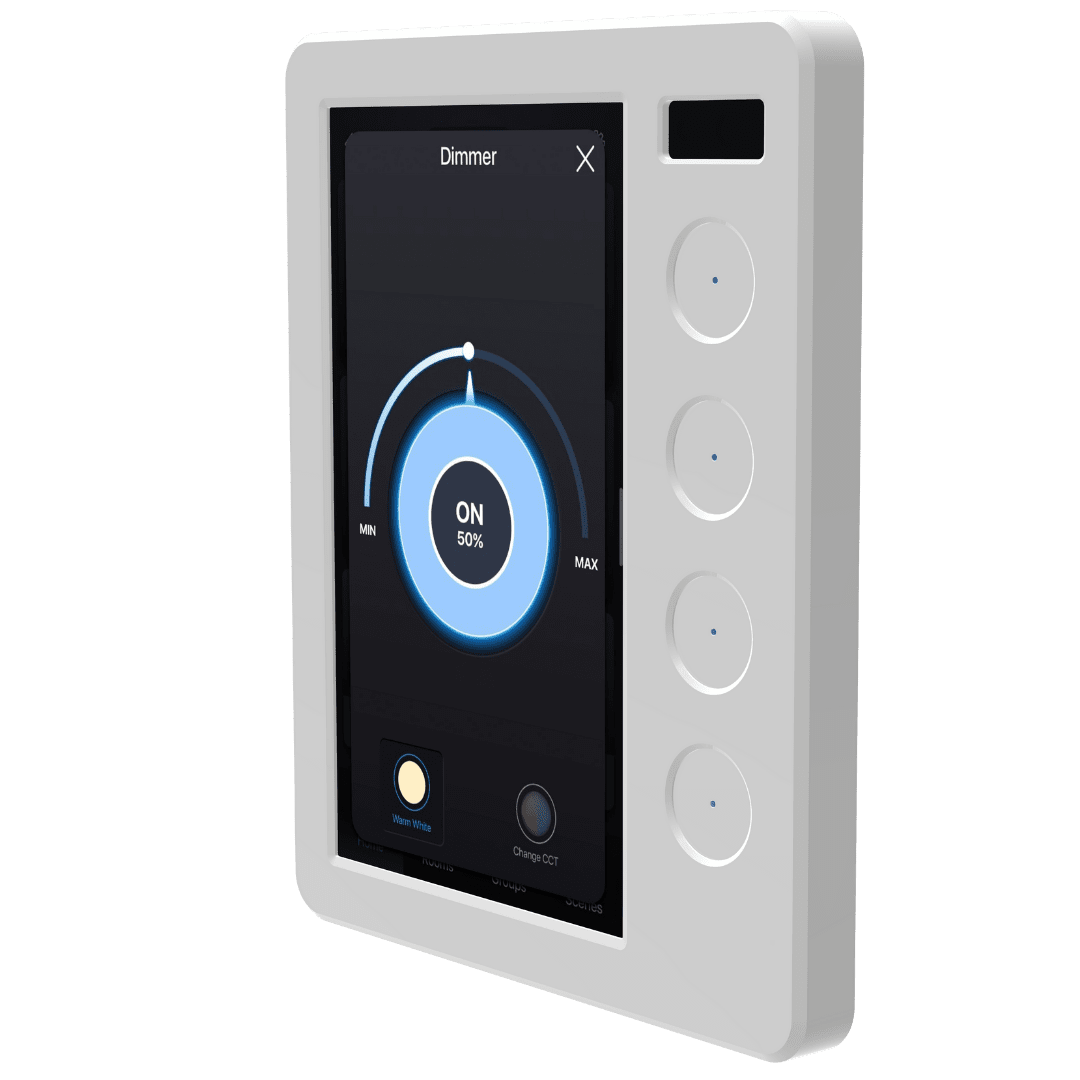

Butter Smooth Touch Panel

Featuring a 5.5 inch full colour touch screen for central control of your PIXIE smart home.

P

Customisable

Customisable home page layout and per Touch Panel setup to match the mounting location control needs.

P

Interactive

Light level and proximity sensor for improved Touch Panel interactivity and performance.

P

Multifunction Buttons

Four PIXIE Multifunction buttons built-in for configuring quick access to regularly used devices, groups and scenes.

P

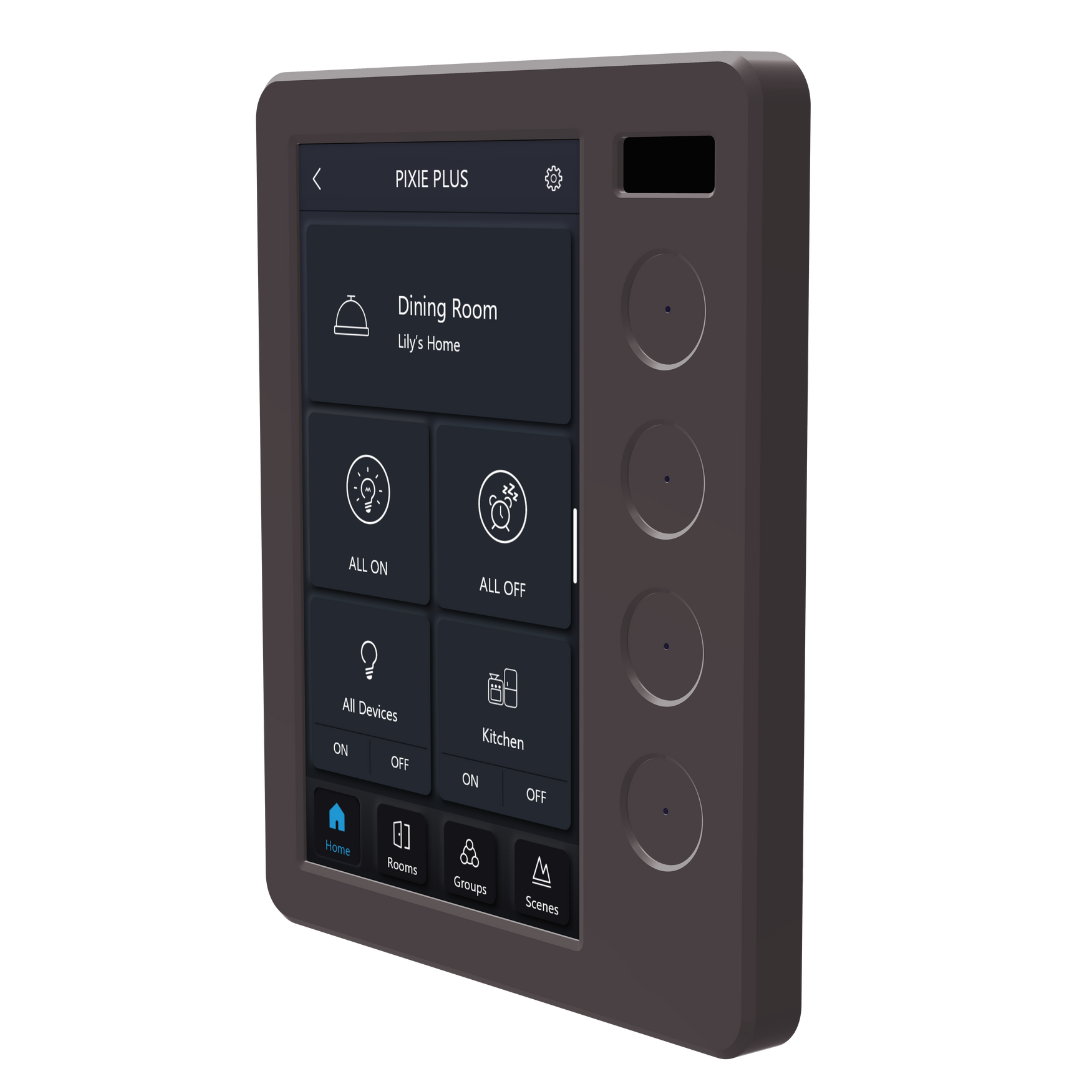

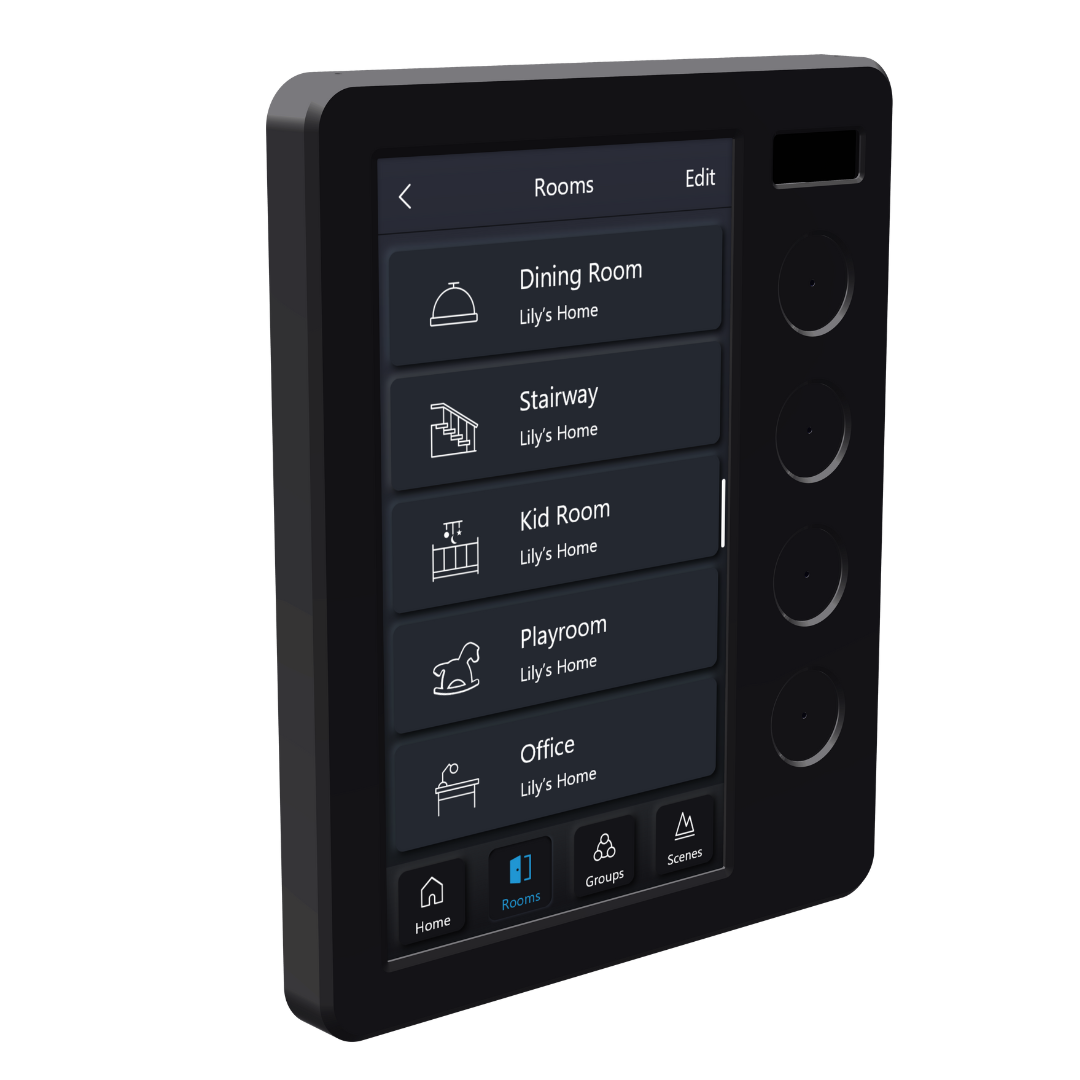

Stylish Ambience Faceplate

Made to match the PIXIE Ambience range of faceplate, this unique, modern styling delivers an on-wall future-feel.

Download the Desktop version (Hi-res)

PIXIE Works with the Best Global Brands for a Connected Home

INTERCOM & DOORBELL TECHNOLOGY

DUCTED AND SPLIT AIRCONDITONING SYSTEMS

AUSTRALIAN DC CEILING TECHNOLOGY

PIXIE smart double power point - Smart home schedules - Schedule your appliances

Pull out reminder menu

Need to remember what those Multifunction buttons have been setup to do?

No problem, simply slide out the hidden menu for guidance – and if you’re unhappy with the current setup, hit the pencil icon and reconfigure their operation.

PIXIE smart home double power point - Schedule all our garden lights

POE or Low Voltage Power

Powered by either POE or a low voltage power supply for simple installation and connection to the in-home network via Ethernet or WiFi.

Fits into a standard single-gang wall plate mount.

Control your appliances with the PIXIE App - Smart home double power point - PIXIE smart home

Intuitive User Feedback

On screen messaging reassures users by confirming the desired operation has been performed, wherever in the home it happended.

Voice control of your double power points - PIXIE smart home double power point

All the control you need

Control scenes, groups and individual devices with fine tuning control of individual device right from the Touch Panel

TRANSFORM YOUR HOME WITH PIXIE TOUCH PANEL VALUE KITS

Discover the great value of the PIXIE Touch Panel and Gateway combined into exclusive value kits tailored for your smart home needs.

Three different kits

Depending on how many PIXIE devices you need and your smart home requirements, we have a kit for you.

No Purchase Limit

Select whatever combinations of the kits you need.

Buy more, save more

Each kit has more devices, and with that comes more savings.

Make the most of Multifunction buttons

The four built-in PIXIE Multifunction buttons unleash the power of PIXIE with the ability to control individual devices (including dimming), groups-of-devices, blinds and even scenes – anywhere in the PIXIE Smart home.

PIXIE 2 way control - PIXIE smart home 3 way control - PIXIE multifunction controller

2-way, 3-way...8-way multiway control

You can control any device from multiple locations including from the PIXIE Touch Panel as all devices work in harmony with each other.

PIXIE smart home dimmer - Extra dimming spot - PIXIE multifunction controller

That extra dimming spot you always wanted.

Always wanted another dimming location for your living room lights but everyone told you it couldn’t be done or would cost a fortune? Not any more.

PIXIE double tap scene controller - Flexible smart home scene controller - PIXIE smart home

Try double tap only.

When setup to operate in Scene Mode, the Multifunction switches provide a single tap and double tap functionality. Using a double-tap-only to recall a scene, hides special functions or actions from prying fingers without the insider knowledge.

Smart home welcome home scene - Smart home goodbye scenes - PIXIE multifunction controller

Welcome home. Goodbye.

The ultimate smart home function delivered simply. On your way out, double tap to recall your Goodbye Scene and shut down your home. Later when returning home, a single click activates your Welcome Home scene, turns on common lights and open your blinds – as just one example.

PIXIE flexible smart home scene controller - Home owner can change setup and control with PIXIE smart home Apps

Changed your mind?

Lived with it and don’t love how it works anymore? Great! PIXIE multifunction switches can be re-purposed from the PIXIE Touch Panel in moments at any time, simply by homeowners.

PIXIE multifunction controllers - Simple smart home wiring - PIXIE smart home system

Scenes on a Single Tap and / or Double Tap.

After creating your scenes in the PIXIE App, simply assign up to 2 scenes per Multifunction button location to expand the functionality of these built-in buttons.

Controlled Convenience.

Perfect for Blinds and Ceiling Fans too.

Using PIXIE to control motorised blinds and curtains can sometimes mean the need to install a whole lot of extra buttons on the wall for Up / Stop / Down functionality for every motor (If more than PIXIE App control of these is desired.)

Likewise with AC ceiling fans, selecting the high, medium and low speeds for every fan, in each room, can increase the number of buttons needed on every wall panel.

Whilst PIXIE App control can always be used for these functions, when on wall control is needed, instead of adding extra buttons, installing a PIXIE Ambience Touch Panel in a central location delivers always on, always accessible control of every blind, curtain, awning, ceiling fan everywhere throughout the home for a more cost effective smart home solution.

Specifications

PIXIE wiring diagram - PIXIE smart home multifunction switch

PIXIE Ambience Touch Panel

  • Optional, premium solution
  • 5.5 inch, full colour touchscreen
  • Simple installation with choice between POE power or simple DC power supply.
  • Easy to mount using provided template and sturdy wall mounting bracket, directly into standard Australian mounting hardware and single plate penetrations.
  • Proximity sensor to illuminate screen on approach for rapid access
  • Light level sensor automatically dims touchscreen based on ambient light for superb visual comfort
  • Screen saver, time & weather function to save screen add utility and / or black out completely according to customer configuration
  • Requires the PIXIE Gateway (SGW3/BTAS*) and free PIXIE PLUS App to operate.

Documents

PIXIE Accessories - Increase the IQ of your Smart Home

Increase the IQ of your smart home - PIXIE smart home accessories - PIXIE dry contact interface

Contact Sensor Transceiver

Monitor open & closed status of gates/doors/windows, via a set of contact sensors (sold separately). Push Notifications to users are delivered (PIXIE PLUS App only) when status change occurs.

PIXIE relay controller - Increase the IQ of your smart home - PIXIE smart home accessories

Mesh Signal Booster

Expand the signal coverage of an established PIXIE network, extending the control distances and enhancing PIXIE local wireless communication stability where signal strength is less than ideal due to building materials, architecture and product placement.

PIXIE Multifunction Remote Control Mech - ideal where getting wiring down a wall is challenging

Remote Control Button

The ALL NEW remote control button provides PIXIE's famous multifunction control functionality in a modern form factor and comes with magnets and 3M stickies to attach where needed.

PIXIE Multifunction Remote Control Mech - ideal where getting wiring down a wall is challenging

Non Smart Button & Momentary

Designed to fit the PIXIE Ambience wall plate range and available in 2 version - Press Mech and Momentary press Mech. These 10AX rates non smart switches deliver a uniform look and feel when combined PIXIE smart and Non smart devices are needed on the same wall plate.

Increase the IQ of your smart home - PIXIE smart home accessories - PIXIE dry contact interface

3rd Party Interfacing Module

Experience complete home automation. Make your home even smarter with the interfacing module. Integrate your PIXIE home to legacy home automation systems, audio visual systems and security systems.

PIXIE relay controller - Increase the IQ of your smart home - PIXIE smart home accessories

Larger Load Relay Controller

 Control devices with larger electrical loads like pool pumps and floodlights. Drive contactors for outdoor heaters and control any sized load simply and easily with schedules and automatic control.

PIXIE accessories - smart timer - smart home accessories

Smart Timer Module

This highly specialised module allows even more energy savings fine tuning and timing for non-timer enabled devices, timing out groups and timing out scenes throughout your smart home, inside and out.

PIXIE Multifunction Remote Control Mech - ideal where getting wiring down a wall is challenging

Remote Control Mech

All the power of a PIXIE Multifunction controller in a battery powered device. Perfect for installation where getting a wire down a wall is a challenge for multiway control and scene control functions.
